Distribution transformers

Dry-type and oil-filled distribution transformers, wound and tested at Faridabad works.

Core stacked and coils wound in-house. Oil-filled units are tanked, fitted with bushings and radiators; dry-type units are finished for their enclosure and duty. Both are tested before dispatch.

  • Wound and tanked in-house
  • Tested before dispatch with records handed over
  • Built to project rating and vector-group requirements
A three-phase transformer core-and-coil assembly on a steel frame, copper windings visible on all three limbs, suspended from a hydraulic crane in a works yard.
Core-and-coil assembly lifted in the yard. Windings on all three limbs are visible before tanking.
SPECIFICATION
Specification. 2 of 8 values are documented; the rest are set per order or unpublished.
Rating To your requirement Set by your connected load and maximum demand.
Voltage class and vector group To your requirement Issued to your rating, vector group, impedance and cooling class.
Impedance To your requirement Settled at drawing stage against your system requirement.
Cooling class To your requirement Determined by rating and installation condition.
Types built Dry type and oil filled Both are named in the ISO 9001:2015 certified scope.Source: ISO 9001:2015 certificate E20250830652, scope block
Winding construction Foil and strip, wound in-house Source: Existing site copy, carried from Company Profile 2026
Largest rating built to date Not published — no project record is on file to support a figure.
Type-test reports Not published — no test report has been supplied for publication.

Evidence

  • ISO 9001:2015 quality management certificateE20250830652Royal Assessments Pvt. Ltd., accredited through EGACOpen document
  • Thirteen activities are named in the scope of ISO 9001:2015 certificate E20250830652: LT control panels; MCC; PCC; PLC panels; VFD panels; power factor panels (APFCR); control transformer; distribution transformers (dry and oil); on-line UPS; compact sub-station; on/off-line solar system; electrical turnkey projects; electrical consultant/contractor and electrical worksE20250830652Royal Assessments Pvt. Ltd., accredited through EGACOpen document

At the works

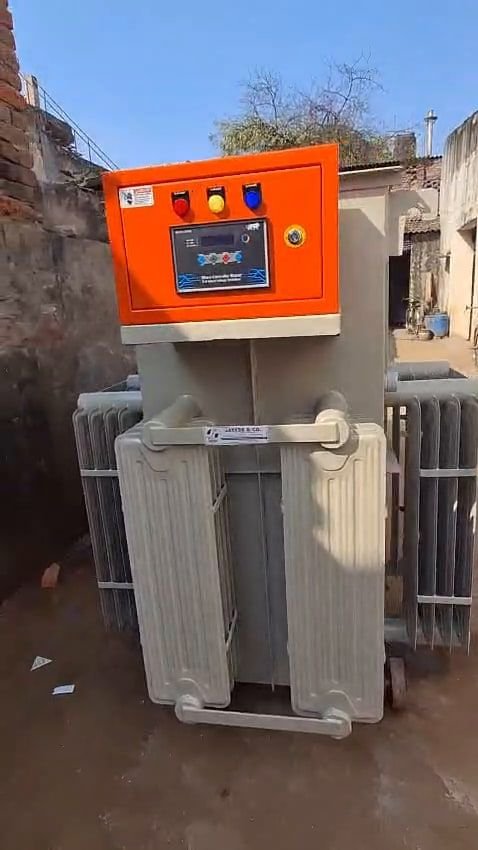

A transformer tank with pressed-steel radiator banks on both sides, lifting lugs at the corners, and an orange-fronted control box mounted on top carrying indicator lamps and a display. A Jayess & Co. label is fixed to the tank.
Radiator banks either side of the tank, controller mounted on top. No nameplate is legible in the frame, so no rating or voltage class is stated.

Documents

  • Distribution transformer datasheet Issued to your rating, vector group, impedance and cooling class.
    Request Drawn to your rating and requirement rather than published as a generic file.

Related

Enquire about distribution transformers

Send the rating, the single line diagram and the site. That is enough for a firm quotation — an enquiry without them gets a phone call asking for them.
